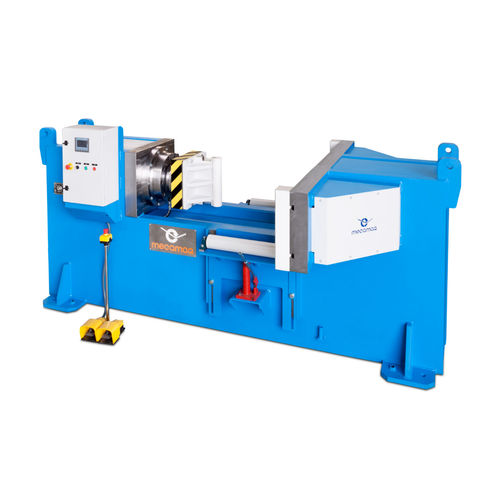

Electro-hydraulic press PHH250 4450formingramhorizontal
Add to favorites
Compare this product
Characteristics
- Operation
- electro-hydraulic
- Function
- forming
- Structure
- ram
- Other characteristics
- horizontal
- Force
250 tf
- Opening
Min.: 0 mm
(0 in)Max.: 1,000 mm
(39 in)- Stroke
500 mm
(19.685 in)- Table width
Min.: 400 mm
(16 in)Max.: 500 mm
(20 in)- Table length
Min.: 400 mm
(16 in)Max.: 1,800 mm
(71 in)- Max. pressure
315 bar
(4,569 psi)- Working speed
2 mm/s
- Approaching speed
10 mm/s
- Hydraulic pump power
5.6 kW
- Weight
9,000 kg
(19,842 lb)- Overall length
1,800 mm
(71 in)- Overall width
3,300 mm
(130 in)- Overall height
1,550 mm
(61 in)
Description
Power (tons) - 250
Stroke (mm) - 500
Lower plate (mm) - 1800x500
Upper plate (mm) - 400x400
Maximum oppening (mm) - 1000
Engine power (HP) - 7,5
Approximation speed (mm/s) - 10
Working speed (mm/s) - 2,3
Max. pressure (Bar) - 315
Machine dimensions (m) - 1,80x3,30x1,55
Weight (Kg.) - 9000
VIDEO
Catalogs
PHH250 4450
1 Pages
