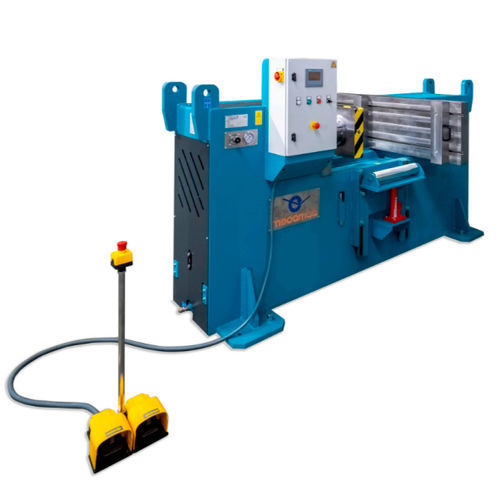

Electro-hydraulic press PHH150 5446formingdouble-columnhorizontal
Add to favorites
Compare this product
Characteristics
- Operation
- electro-hydraulic
- Function
- forming
- Structure
- double-column
- Other characteristics
- horizontal, double-action, with automatic feeder
- Force
150 tf
- Opening
Min.: 0 mm
(0 in)Max.: 700 mm
(28 in)- Stroke
400 mm
(15.748 in)- Table width
Min.: 400 mm
(16 in)Max.: 500 mm
(20 in)- Table length
Min.: 450 mm
(18 in)Max.: 1,500 mm
(59 in)- Max. pressure
300 bar
(4,351 psi)- Working speed
2 mm/s
- Approaching speed
10 mm/s
- Weight
5,700 kg
(12,566 lb)- Overall width
2,910 mm
(115 in)- Overall height
1,650 mm
(65 in)
Description
Power (tons) - 150
Stroke (mm) - 400
Lower plate (mm) - 1500x500
Upper plate (mm) - 450x400
Throat depth (mm) - 265
Maximum oppening (mm) - 700
Engine power (HP) - 5,5
Approximation speed (mm/s) - 10
Working speed (mm/s) - 2,4
Max. pressure (Bar) - 300
Height (mm.) - 1650
Width (mm.) - 2910
Depth (mm.) - 1500
Weight (Kg.) - 5700
