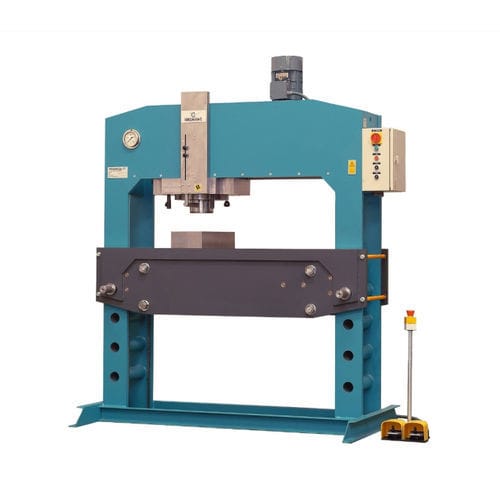

Hydraulic press CD-150electricformingframe
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, electric
- Function
- forming
- Structure
- frame
- Other characteristics
- fixed
- Force
150 tf
- Opening
Min.: 260 mm
(10 in)Max.: 1,500 mm
(59 in)- Stroke
250 mm
(9.843 in)- Return speed
230 mm/min
(0.2 in/s)- Hydraulic pump power
4.1 kW
- Weight
1,950 kg
(4,299 lb)- Overall length
1,200 mm
(47 in)- Overall width
1,970 mm
(78 in)- Overall height
2,450 mm
(96 in)
Description
Pressure regulator - •
Two-speed hydraulic unit - •
Maneuver by means of electric pedals - S
Maneuver by means of two-hand controls - •
Limit switches and anti-spinning system - •
Motorised bedplate - •
Special front opening 1500mm. - S
Folding equipment 415 mm - •
Fixed rear guard - •
Safety front doors - •
[ • ] Optional [ S ] Included [ - ] Nonexisten
Catalogs
CD-150
1 Pages
