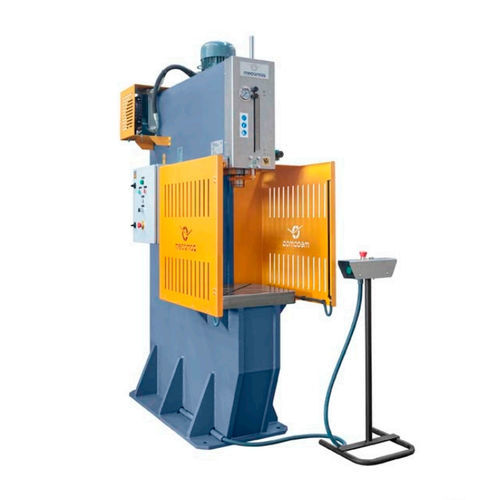

Hydraulic press PCC-80formingframevertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- frame
- Other characteristics
- vertical
- Applications
- for production
- Force
80 tf
- Opening
500 mm
(20 in)- Stroke
250 mm
(9.843 in)- Table width
500 mm
(20 in)- Table length
700 mm
(28 in)- Max. pressure
315 bar
(4,569 psi)- Working speed
6 mm/s
- Approaching speed
25 mm/s
- Hydraulic pump power
4.1 kW
Description
Power (tons) - 80
Stroke (mm) - 250
Lower plate (mm) - 700x500
Throat depth (mm) - 300
Vertical opening useable (mm) - 500
Engine power (HP) - 5,5
Approximation speed (mm/s) - 25
Working speed (mm/s) - 6
Max. pressure (Bar) - 315
Catalogs
PCC-80
1 Pages
