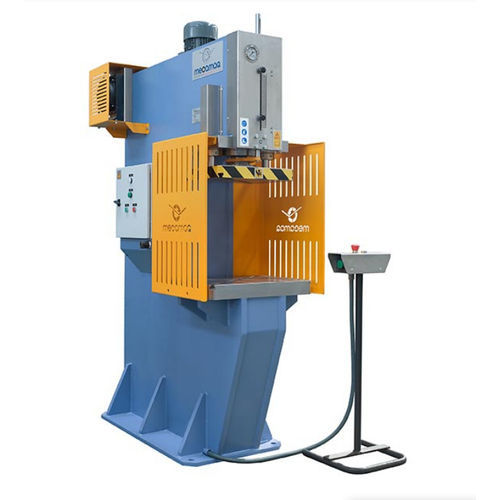

Hydraulic press PCM-40formingframevertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- frame
- Other characteristics
- vertical
- Applications
- for production
- Force
40 tf
- Opening
500 mm
(20 in)- Stroke
250 mm
(9.843 in)- Table width
Min.: 350 mm
(14 in)Max.: 450 mm
(18 in)- Table length
Min.: 450 mm
(18 in)Max.: 600 mm
(24 in)- Max. pressure
300 bar
(4,351 psi)- Working speed
8 mm/s
- Approaching speed
28 mm/s
- Hydraulic pump power
3 kW
Description
Power (tons) - 40
Stroke (mm) - 250
Guides Ø (mm) - 40
Lower plate (mm) - 600x450
Upper plate (mm) - 450x350
Throat depth (mm) - 250
Vertical opening useable (mm) - 500
Engine power (HP) - 4
Approximation speed (mm/s) - 28
Working speed (mm/s) - 7,5
Max. pressure (Bar) - 300
