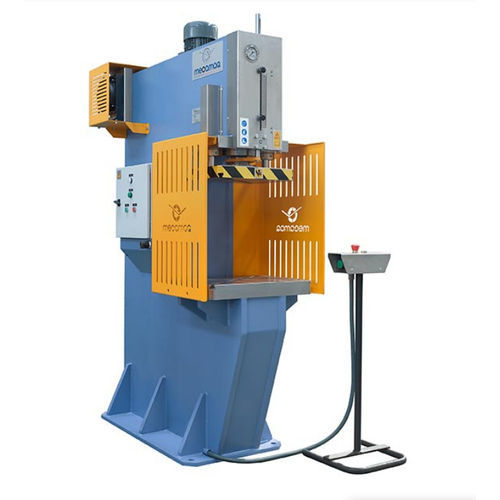

Hydraulic press PCM-60formingframevertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- frame
- Other characteristics
- vertical
- Applications
- for production
- Force
60 tf
- Opening
500 mm
(20 in)- Stroke
250 mm
(9.843 in)- Table width
Min.: 400 mm
(16 in)Max.: 500 mm
(20 in)- Table length
Min.: 600 mm
(24 in)Max.: 700 mm
(28 in)- Max. pressure
315 bar
(4,569 psi)- Working speed
6 mm/s
- Approaching speed
25 mm/s
- Hydraulic pump power
4.1 kW
Description
Power (tons) - 80
Stroke (mm) - 250
Guides Ø (mm) - 50
Lower plate (mm) - 700x500
Upper plate (mm) - 600x400
Throat depth (mm) - 300
Vertical opening useable (mm) - 500
Engine power (HP) - 5,5
Approximation speed (mm/s) - 25
Working speed (mm/s) - 6
Max. pressure (Bar) - 315
Catalogs
PCM-60
1 Pages
