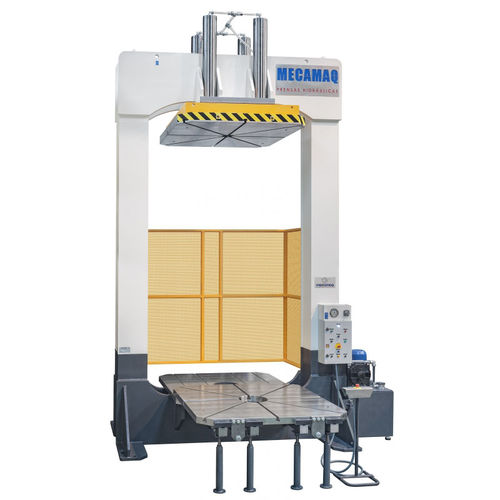

Hydraulic press PDM-300for moldingdouble-action
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- for molding
- Other characteristics
- double-action
- Opening
800 mm, 3,400 mm
(31 in, 134 in)- Stroke
500 mm
(19.685 in)- Max. pressure
320 bar
(4,641 psi)- Working speed
4 mm/s
- Weight
5,000 kg, 20,000 kg
(11,023 lb, 44,092 lb)- Overall length
3 m
(9'10" )- Overall width
1 m
(3'03" )- Overall height
3 m
(9'10" )
Description
Power of the machine 300 Tm.
Activation of the machine by means of 4 double effect cylinders.
Lower plate removable: 1.700 x 1.700mm.
Distance of removable plate: 1.200 mm.
Maximum load on the removable plate: 8.000 Kg.
Upper plate dimensions: 1.700 x 1.700 mm.
Useful front dimension: 2.300 mm.
Approximation speed: 1.000 mm/min.
Activation by means of two-hand safety control.
Features
Power (tons) - 120
Guides Ø (mm) - 70
Lower and upper plate (mm) - 1400x800
Engine power (HP) - 5,5
Approximation speed (mm/s) - 16
