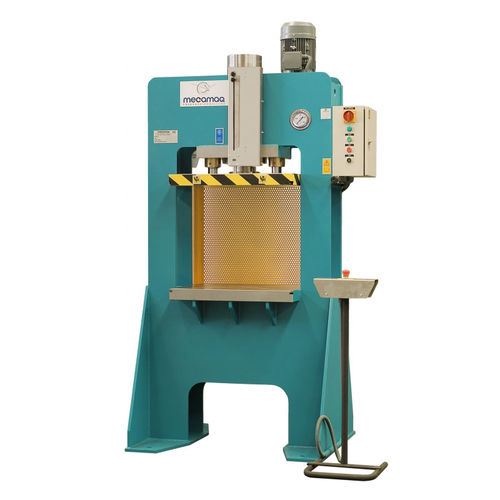

Hydraulic press PDM-80formingstraight-sidevertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- straight-side
- Other characteristics
- vertical, custom
- Opening
600 mm
(24 in)- Max. pressure
320 bar
(4,641 psi)- Working speed
300 mm/min
(0.2 in/s)- Weight
1,900 kg
(4,189 lb)
Description
Capacity 80 Tm with a stroke cylinder, 400 mm adjustable.
Top and low table 750 x 600 mm with grooves "T" M16.
Top table with 2 cylindrical guides Ø60 mm.
Speed approximation / work: 1.100 / 300mm x minute.
Power engine: 5,5 Hp.
Catalogs
PDM-PDV series
4 Pages
