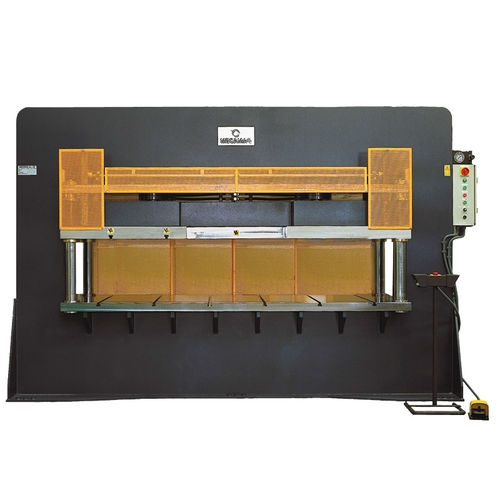

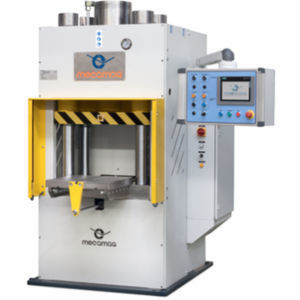

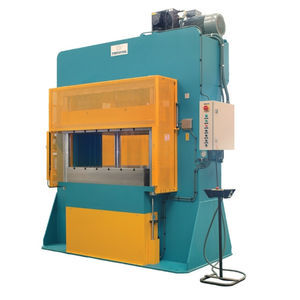

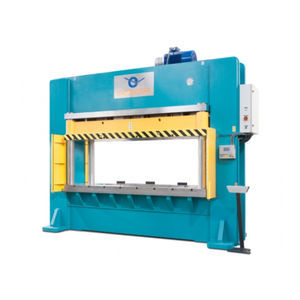

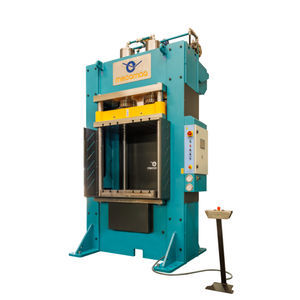

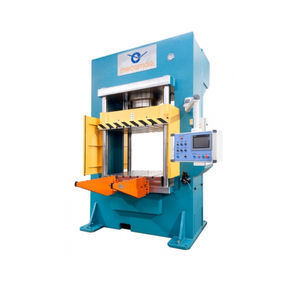

Hydraulic press PHA-100formingstraight-side
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- straight-side
- Force
996.4 kN
- Opening
500 mm, 1,300 mm
(20 in, 51 in)- Stroke
900 mm
(35.433 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
11 mm/s
- Weight
14,000 kg
(30,865 lb)- Overall length
3 m
(9'10" )- Overall width
2 m
(6'06" )- Overall height
4 m
(13'01" )
Description
100 Tn power via two cylinders.
2.800 x 1.000mm benches.
100 mm upper bench route.
2 speeds, approximation and operation.
10 Hp engine power.
Course control via end of track.
Pressure control via electrical pressure switch.
Features
Power (tons) - 300
Columns Ø (mm) - 100
Lower plate (mm) - 1200x1000
Upper plate (mm) - 1200x1000
Lower and upper plate (mm) - 1200 x 1000
Engine power (HP) - 40
Approximation speed (mm/s) - 40
Cushion plate (mm) - 800 x 800
Cushion power [tons] - 120
Cushion stroke [mm] - 400
