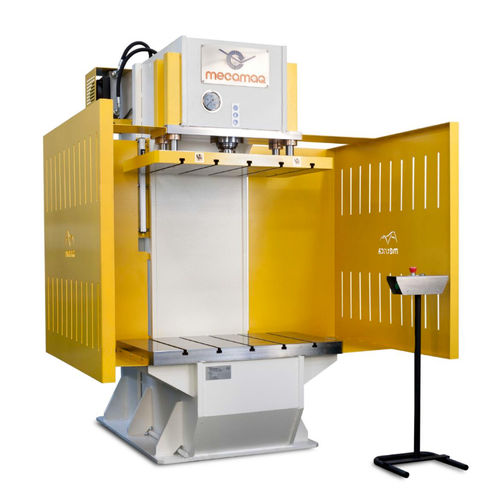

Hydraulic press PCM20R 4365forming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Force
196.1 kN
- Opening
600 mm
(24 in)- Stroke
450 mm
(17.717 in)- Max. pressure
200 bar
(2,901 psi)- Working speed
10 mm/s
- Weight
3,100 kg
(6,834 lb)- Overall length
1 m
(3'03" )- Overall width
2 m
(6'06" )- Overall height
3 m
(9'10" )
Description
Power (tons) - 16
Lower plate (mm) - 1200x1000
Upper plate (mm) - 280x180
Throat depth (mm) - 850
Engine power (HP) - 3
Approximation speed (mm/s) - 30
