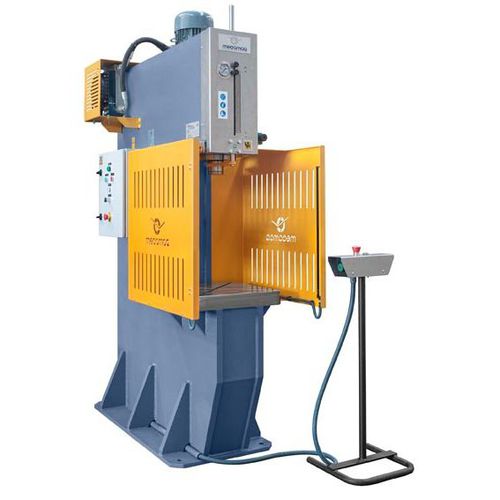

Hydraulic press PCC-100

punchingformingbending

Hydraulic press MECAMAQ “C-Frame PCC series” useful for industrial applications who requires center-loads useful for broad range of operations such as, forming, punching, bending or other industrial applications. Hydraulic equipment including 3 speeds (fast approach, work speed and fast return) redundant control valves, decompression valves, safety valves and steel pump with maximum pressure 320bars. End of the piston rod mechanized to adjustment of tools, lower plate mechanized with “T-slots” (DIN 650). Machine series equipment includes electric limit switches, pressure switch, two-hand safety activation and physical barriers according to EU safety guidelines. Machine optional equipment available for these models is the following; Front side protections with doors, photoelectric barriers, machine parameters controlled by means of tactile panel (according to customer requirements), hydraulic cushion and hydraulic ejectors for upper/lower plate, pieces counter and hot plates applications under demand. For different dimensions or features, we prepare estimates according to customer specifications. Available tonnage from 40 to 300 tons. (more powerful are available under demand) Power (tons) - 100 Lower plate (mm) - 800x550 Throat depth (mm) - 325 Engine power (HP) - 7,5 Approximation speed (mm/s) - 22
