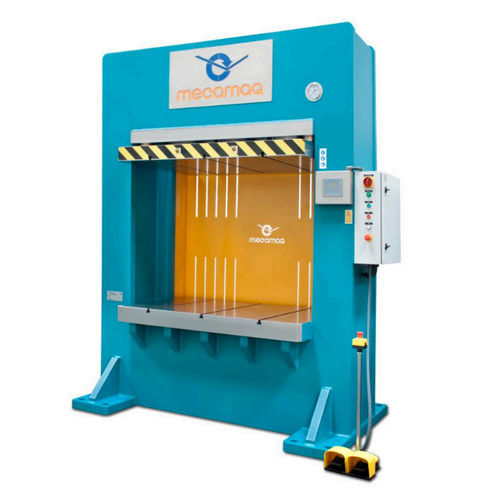

Hydraulic press PDM-500

formingstraight-sidewith fixed table

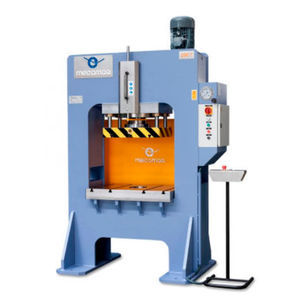

Hydraulic presses MECAMAQ “PDM series” are designed with heavy-duty frame design, useful for operations with die, mould or tools. These kind of machine includes the upper plate. Hydraulic equipment including 3 speeds (fast approach, work speed and fast return) redundant control valves, decompression valves, safety valves and steel pump with maximum pressure 320bars. The PDM model includes upper and lower plate mechanized with “T-slots” DIN 650. Upper plate guided by means of 2 or 4 cylindrical columns with bronze sleeves. Machine series equipment includes electric limit switches, pressure switch, two-hand safety activation and physical barriers according to EU safety guidelines. Machine optional equipment available for these models is the following: Front side protections with doors, photoelectric barriers, machine parameters controlled by means of tactile panel (according to customer requirements), hydraulic cushion and hydraulic ejectors for upper/lower plate, pieces counter and hot plates for temperature applications. For different dimensions or features, we prepare estimates according to customer specifications. Available tonnage from 40 to 500 tons. (More powerful are available under demand). Power (tons) - 500 Guides Ø (mm) - 80 Lower plate (mm) - 1200x850 Upper plate (mm) - 1100x800 Engine power (HP) - 25 Approximation speed (mm/s) - 11
