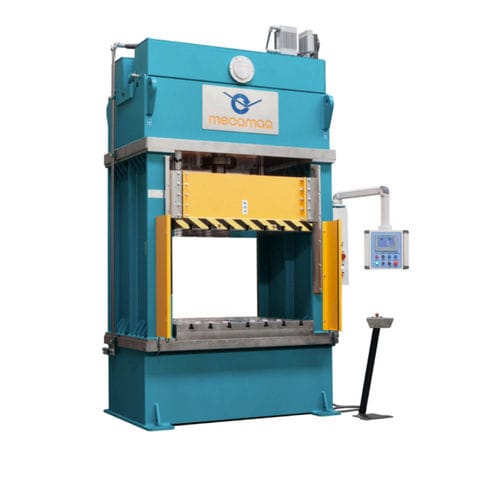

Hydraulic press PRI-200RC 4740
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Force
1,992.8 kN
- Opening
1,000 mm
(39 in)- Stroke
800 mm
(31.496 in)- Max. pressure
270 bar
(3,916 psi)- Working speed
Max.: 25 mm/s
Min.: 5 mm/s
- Weight
18,000 kg
(39,683 lb)- Overall length
2 m
(6'06" )- Overall width
2 m
(6'06" )- Overall height
4 m
(13'01" )
Description
Power (tons) - 200
Lower and upper plate (mm) - 1500x1300
Engine power (HP) - 15
Approximation speed (mm/s) - 140
Cushion power [tons] - 80
Cushion stroke [mm] - 200
