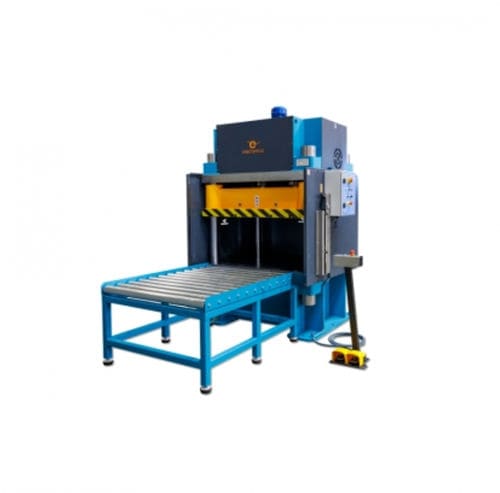

Hydraulic press PHA150 5858formingroller4-column
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- 4-column, roller
- Opening
600 mm
(24 in)- Stroke
500 mm
(19.685 in)- Max. pressure
300 bar
(4,351 psi)- Working speed
6 mm/s
- Weight
9,500 kg
(20,944 lb)- Overall width
1,858 mm
(73 in)- Overall height
2,815 mm
(111 in)
Description
Approximation speed 9mm/s.
Infeed roller supports 1500mm.
Features
Power (tons) - 150
Columns Ø (mm) - 120
Lower and upper plate (mm) - 1220x1220
Engine power (HP) - 5,5
Approximation speed (mm/s) - 9
Depth (mm.) - 1481
