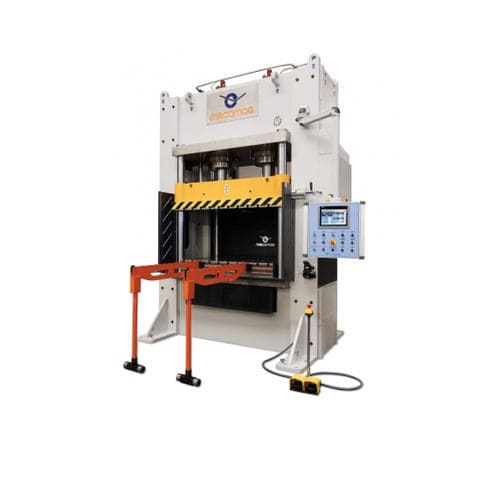

Hydraulic press PHA600RC 5707forming4-column
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- 4-column
- Opening
900 mm
(35 in)- Stroke
700 mm
(27.559 in)- Max. pressure
300 bar
(4,351 psi)- Working speed
5 mm/s
- Weight
24,500 kg
(54,013 lb)- Overall width
2,800 mm
(110 in)- Overall height
4,180 mm
(165 in)
Description
Proportional control p/Q.
PLC&HMI 12".
Features
Power (tons) - 600
Columns Ø (mm) - 120
Lower and upper plate (mm) - 1500x1150
Engine power (HP) - 40
Approximation speed (mm/s) - 100
Cushion plate (mm) - 1250x1000
Cushion power [tons] - 300
Cushion stroke [mm] - 200
Depth (mm.) - 2100
