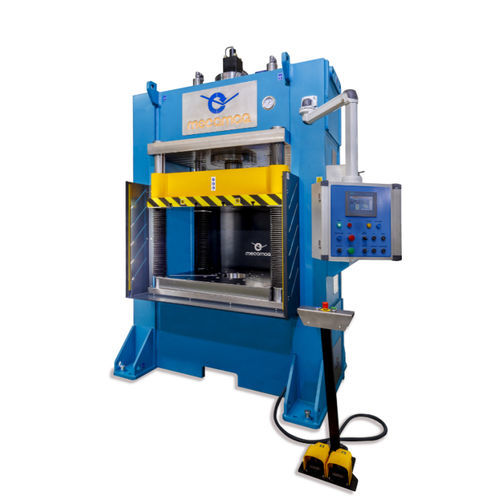

Hydraulic press PHA300RC 5471forming4-column
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- 4-column
- Opening
800 mm
(31 in)- Stroke
600 mm
(23.622 in)- Max. pressure
320 bar
(4,641 psi)- Working speed
5 mm/s
- Weight
13,000 kg
(28,660 lb)- Overall width
2,370 mm
(93 in)- Overall height
3,470 mm
(137 in)
Description
PLC&HMI 12".
Front console with movable arm.
Features
Power (tons) - 300
Columns Ø (mm) - 110
Lower plate (mm) - 1200x1000
Upper plate (mm) - 1200x1000
Engine power (HP) - 25
Approximation speed (mm/s) - 130
Cushion plate (mm) - 500x500
Cushion power [tons] - 125
Cushion stroke [mm] - 250
Depth (mm.) - 1740
Catalogs
No catalogs are available for this product.
See all of Mécamaq‘s catalogs
