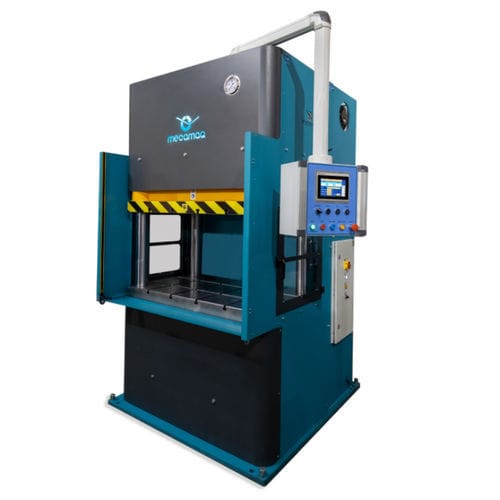

Hydraulic press PHA100R 5231forming4-column
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- 4-column
- Opening
600 mm
(24 in)- Stroke
320 mm
(12.598 in)- Max. pressure
260 bar
(3,771 psi)- Working speed
Max.: 25 mm/s
Min.: 9 mm/s
- Weight
6,850 kg
(15,102 lb)- Overall width
1,500 mm
(59 in)- Overall height
2,700 mm
(106 in)
Description
PLC&HMI 7".
Front console with movable arm.
Features
Power (tons) - 100
Columns Ø (mm) - 110
Lower plate (mm) - 1000x800
Upper plate (mm) - 1000x800
Engine power (HP) - 10
Approximation speed (mm/s) - 140
Depth (mm.) - 1720
