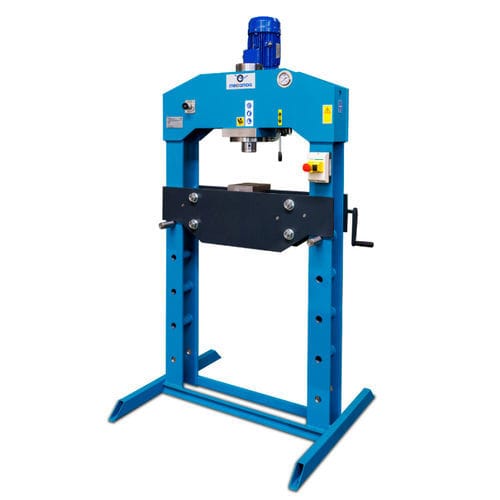

Hydraulic press DE-50

motorizedformingframe

Activated by means of sensitive manual distributor with 3 positions. Machined attachment on the lower end of the cylinder rod for attaching different tools. Rigid monoblock frame built with ST52 steel. Movable bedplate adjustable to different heights by means of an anti-fall worm reducer, with transmission by means of stranded steel cable or chain (depending on the model). Machines are supplied with support dollies for the bedplate, replaceable rod-end cover, glycerine manometer and user's manual. All of our machines are supplied in compliance with the CE guidelines on machinery 2006/42/CE and the directive on electromagnetic compatibility 2014/30/UE. Risk evaluation and safety measures / Hybrid method application. Power (tons) - 80 Hydraulic system speeds. - 1 Engine power (HP) - 4 Depth (mm.) - 1000 Accessories Pressure regulator - • Two-speed hydraulic unit - • Maneuver by means of electric pedals - • Maneuver by means of two-hand controls - • Limit switches and anti-spinning system - • Motorised bedplate - - Special front opening 1500mm. - • Folding equipment 415 mm - • Fixed rear guard - • Safety front doors - • [ • ] Optional [ S ] Included [ - ] Nonexistent
