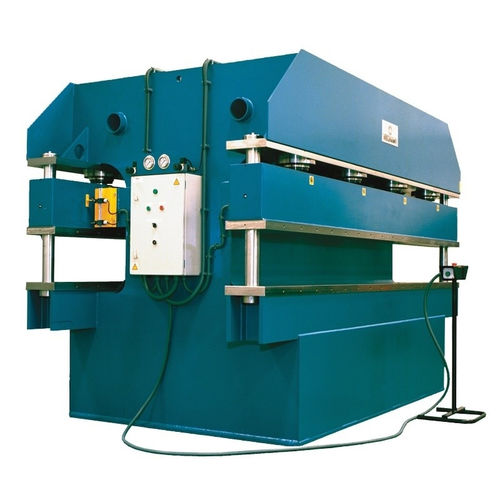

Hydraulic two-press line PHE-320punching
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- punching
- Force
1,569 kN
- Opening
300 mm, 1,000 mm
(12 in, 39 in)- Stroke
800 mm
(31.496 in)- Max. pressure
270 bar
(3,916 psi)- Working speed
Max.: 3 mm/s
Min.: 1 mm/s
- Weight
46,000 kg
(101,413 lb)- Overall length
3 m
(9'10" )- Overall width
3 m
(9'10" )- Overall height
5 m
(16'04" )
Description
2 x 160 Tn power, with 4 cylinders on each workstation.
3100 x 250 mm usable bench measurements.
350 mm collar depth.
150 mm upper bench route.
2 speeds, approximation and operation.
15 Hp engine power.
Course control via independent end of track at each workstation.
Pressure control via electrical pressure switch.
Features
Power (tons) - 800
Lower and upper plate (mm) - 2000x1500
Engine power (HP) - 30
Approximation speed (mm/s) - 75
