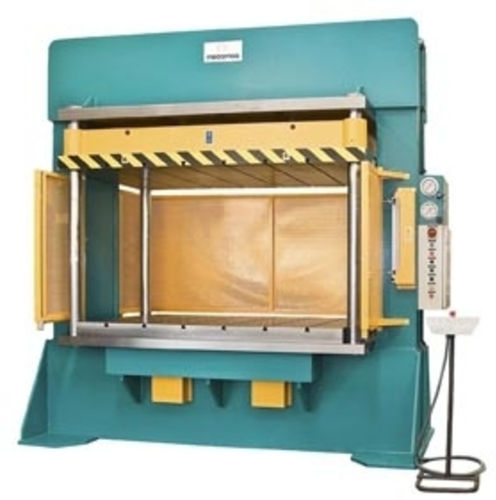

Hydraulic press PHA-200Cforming4-columncustom
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- 4-column
- Other characteristics
- custom
- Opening
1,200 mm
(47 in)- Stroke
500 mm
(19.685 in)- Max. pressure
270 bar
(3,916 psi)- Working speed
5 mm/s
- Weight
25,000 kg
(55,116 lb)- Overall length
4 m
(13'01" )- Overall width
2 m
(6'06" )- Overall height
4 m
(13'01" )
Description
Press MECAMAQ of manufacture to measure, used for the manufacture of signs and informative panels in road.
It has a power of 200 Tm with useful tables between columns of 2.300 x 1.300 mm.
Hydraulic group Bosch Rexroth with bomb of pistons of changeable wealth, driven by an engine of 20 Hp.
The machine takes installed a hydraulic cushion of 80 Tm with a plate of 1.200 x 800 mm guided by four cylindrical columns.
Ride installed a system of antifallen safety of the mobile table and protection of the zone of work with safety fences.
Features
Power (tons) - 400
Columns Ø (mm) - 140
Lower and upper plate (mm) - 2600 x 900
Engine power (HP) - 25
Approximation speed (mm/s) - 17
Catalogs
Custom series
8 Pages
