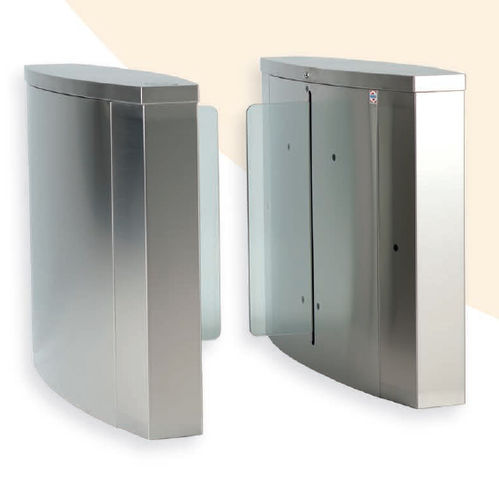

Automatic speed gate PCO-RSV6

stainless steelfor access control

This is a high transit control passage, with dimensions suitable for any surroundings or location. Its structure is built in stainless steel, offering high wear and tear resistance and its brushed satin finish makes it easy to combine with any predominant colour in the area where it is going to be installed. All this unites, with excellent functionality and low maintenance, make it especially suitable for controlling enclosures where there are large numbers of people present. The PCO-RSV6 is operated by a microcontroller system that controls all the equipment’s functions and variables, along with the various components that make up the unit (motor, electro-clutch, photocells, signage pictograms, alarms, audible signals, communications, etc.). Controlled entry into the enclosure is operated via the closure of a circuit on the system control board; this can be done in different ways (card reader, push button, etc.). The moment he circuit receives the signal in a passage direction, it begins the motorised operational cycle by moving the panel towards the interior of the unit. Once the person has passed the panel, it closes again. It is equipped with a safety system to avoid injuries. A standard passage is set up using one-panel gates (PCO-RSV6/1), and for banks of more than one, two-panel gates (PCO-RSV6/2) are set in between.
