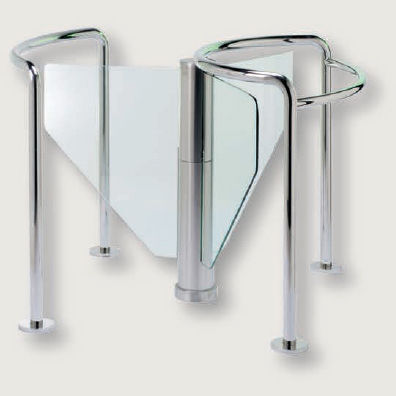

Automatic speed gate TR-8300

stainless steelfor access control

Motorized turning turnstile of medium height for the canalisation and counting control. It differs from other models of bell cranks by its outer measures and its system of pitch control by means of three vanes of control. The user gets into the space between vanes and when it is authorised, with a slight pressure in the panel, this one turns automatically and allows the access, being the vanes positioned for a new person. The dimensions of the compartments have specially been studied to obtain a free-flowing traffic, as it allows the circulation of a person at the normal walking rate, facilitating the flow of users. Also and thanks to a special design of the mechanism, at each step, there is a compartment in situation of being occupied by an individual, with automatic positioning at closed position. The estimated traffic in optimal conditions is of three seconds per person without counting the time of reading in those cases when a card reader is used.
