Vacuum solvent and hybrid solvent degreasing machine
Use Modified Alcohols, Hydrocarbons A3 and Perchlorethylene
Hybrid Process > combination of aqueous solution and solvents
Works entirely under vacuum even in immersion phase
Distillation for continuous solvent regeneration
Immersion cleaning up to 203°F (95°C) and steam-phase degreasing
Closed-circuit work, no effluent discharge
Manufactured by our partner HEMO GmbH (EMO-HÖSEL merger)

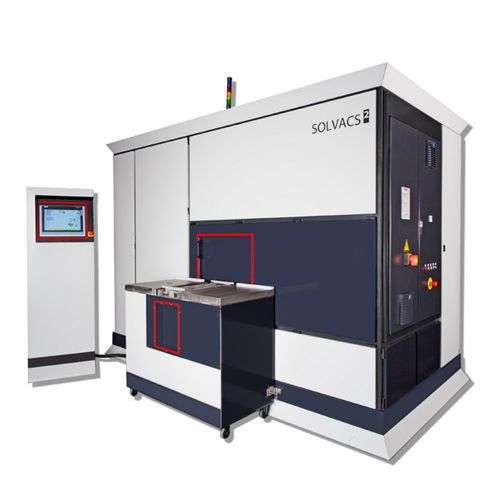

SOLvent VACuum System
Abbreviation of SOLvent VACuum System , the SOLVACS vacuum degreasing machine meets the highest requirements for marks free cleaning / degreasing and drying performance.
Chamber heating by steam
Immersion degreasing up to 203°F (95°C)
Ultrasons and active immersion simultaneously
Steam phase degreasing
Anti-corrosion protection by immersion
Intensive vacuum drying
Fully vacuum
The entire system in contact with the solvent (<100 mbar) works under vacuum to make it possible to clean at a temperature above the flash point of the solvent in both immersion and steam phase.
For 3-shift operation, the machine incorporates a thermal cooling exchanger by a secondary circuit to increase cooling capacity.
Optimal Safety
The TWIN SAFETY GUARD system performs continuous monitoring of solvent flashpoint and the vacuum level via a dual safety (hardware and program).
Indirect heating of the solvent
Draining and automatic drying filters
Monitoring all valves and check valves
Condensation of air discharges to reduce solvent emissions
Floor tank with sensor
