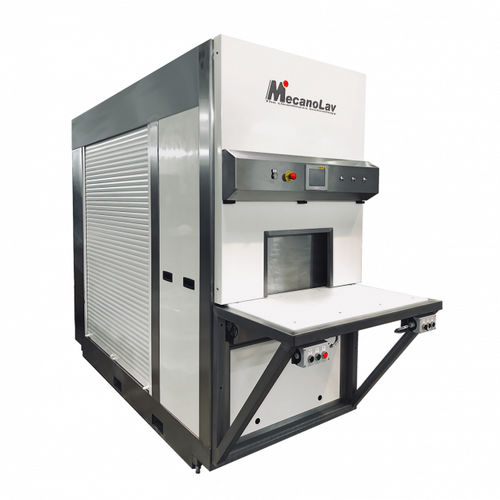

Water cleaning machine MecanoJET
sprayby rotation/agitationautomatic

Water cleaning machine - MecanoJET - MECANOLAV - spray / by rotation/agitation / automatic
Water cleaning machine - MecanoJET - MECANOLAV - spray / by rotation/agitation / automatic
Water cleaning machine - MecanoJET - MECANOLAV - spray / by rotation/agitation / automatic - image - 2
Water cleaning machine - MecanoJET - MECANOLAV - spray / by rotation/agitation / automatic - image - 3
Water cleaning machine - MecanoJET - MECANOLAV - spray / by rotation/agitation / automatic - image - 4
Water cleaning machine - MecanoJET - MECANOLAV - spray / by rotation/agitation / automatic - image - 5
Water cleaning machine - MecanoJET - MECANOLAV - spray / by rotation/agitation / automatic - image - 6
Water cleaning machine - MecanoJET - MECANOLAV - spray / by rotation/agitation / automatic - image - 7
Water cleaning machine - MecanoJET - MECANOLAV - spray / by rotation/agitation / automatic - image - 8
Water cleaning machine - MecanoJET - MECANOLAV - spray / by rotation/agitation / automatic - image - 9
Add to favorites
Compare this product


Characteristics

Technology
water, spray, by rotation/agitation
Operational mode
automatic
Applications
medical, automotive, for surface treatment, for the printing industry, industrial, for the aeronautical industry, metal machining, process
Other characteristics
robust, stainless steel, multiple-stage, compact, front-loading, custom, small-size, multipurpose, with basket, polishing, with dryer, degreasing, 2-tank, rotary drum, with rinsing
Capacity

Min.: 40 l
(10.57 gal)

Max.: 800 l
(211.34 gal)

Description

Spray cleaning system with multiple tanks for big loads 4 to 6 loads per hour Drum oscillation or rotation Modular cycle : washing, rinsing, drying Customized drum according to the load size Integration of automatic loader, conveyors or gantry system Customized drum according to the load size Made in France 4 to 6 load per hour The MecanoJET is specialised for medium and large load allowing a processing capacity from four to six loads per hour. Achieves high cleanliness requirements Great flexibility Processing of large batches The MecanoJET can process loads from 670 x 480 x 300 mm (26 3/8″ x 18 7/8″ x 11 13/16″) up to a custom-made drum. Her twin sister, the MecanoJET Compact can process baskets or palets with dimensions up to 530 x 320 x 200 mm (20 7/8″ x 12 5/8″ x 7 7/8″). 360° rotation and oscillation For each cycle, the MecanoJET has the possibility to select between full rotation or drum oscillation. Full rotation > closed basket / non-sensitive parts or clamped in position Oscillation with a set angle > workpiece carriers / sensible parts One-piece design All devices and features are integrated in the MecanoJET maintenance area. Its strong frame including forklift pockets allowseasy installation on the production workshop. Width 1130 mm (3′ 8 1/2″) Easy installation in a production cell Optimal accessibility via two side rollers shutters Complete and flexible cycle To achieve great degreasing performances, the MecanoJET is equipped with two separated tanks. The cleaning cycle can be adjusted depending on cleanliness requirement and the parts to be cleaned. Spray washing step Spray rinse step Hot air drying and/or blowing step
