Electro-hydraulic press ESDC60K1BLCMswaginghand-held
Add to favorites
Compare this product
Characteristics
- Operation
- electro-hydraulic
- Function
- swaging
- Other characteristics
- hand-held
Description

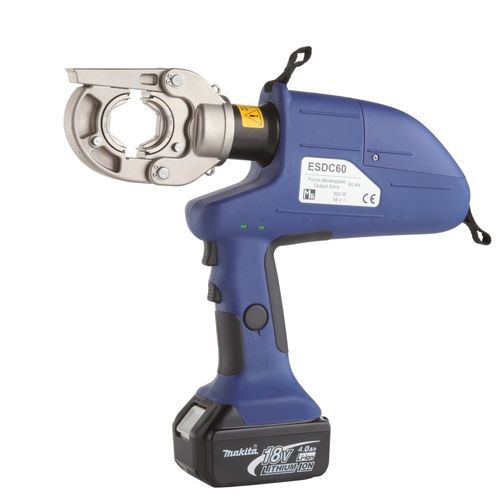

60 kN Cordless Electro-hydraulic Compression Tool to Crimp Tubular and Al/Cu Lugs and Butt Connectors
ESDC60 electro-hydraulic compression tool
✔ Output force: 60 kN
✔ Stroke: 17 mm
✔ Autonomy: 180 to 450 crimping operations with battery 4.0 Ah
✔ Cycle time: 2 to 5 s depending on the section
✔ Dimensions: 350 x 315 x 72 mm
✔ Weight: 4.5 kg (including the battery)
New features:
✔ Electronic control of the cycle.
✔ Return programming according to the user, either automatic or manual.
✔ Automatic or manual return stroke.
✔ Automatic stop at the end of the cycle.
✔ 2-stage hydraulic pump with pilot-operated valve which increases efficiency between 20 and 40%.
✔ Return sound signal.
✔ New PC software for diagnosis and analysis of data
Catalogs
No catalogs are available for this product.
See all of MECATRACTION‘s catalogsOther MECATRACTION products
Tooling for tubular lugs (copper/aluminium), butt connectors and end splices
