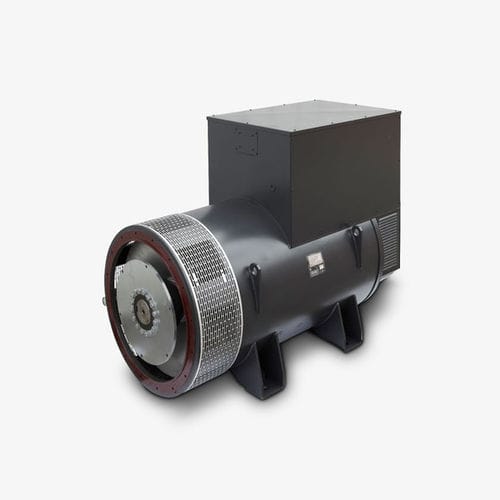

Three-phase alternator ECO46brushless4-polehigh-voltage
Add to favorites
Compare this product
Characteristics
- Phase
- three-phase
- Type
- brushless
- Number of poles
- 4-pole
- Electrical characteristics
- high-voltage, medium-voltage
- Domain
- industrial
- Power in kVA
Max.: 2,500 kVA
(3,399.05 hp)Min.: 1,500 kVA
(2,039.43 hp)- Voltage
Max.: 14 kV
Min.: 0 kV
Description
4 Poles medium and high voltage brushless synchronous alternator
Ratings from 1500 kVA up to 2500 kVA *
50/60Hz - 1500 / 1800 rpm
Axle height 500mm
Medium and high voltage up to 13.8 kV
Insulation system class H, based on Epoxy resin and Mica tapes, VPI process
IP23 protection
IC01 cooling
Single bearing with SAE flange 0-00 and disc coupling SAE 18-21
Double bearings B3B14
Digital voltage regulator DER2 as standard
A vast choice of accessories and configuration for your projects
(*) @ 50Hz / cl.H / 40°C /PF0.8, referred to a 11kV unit
