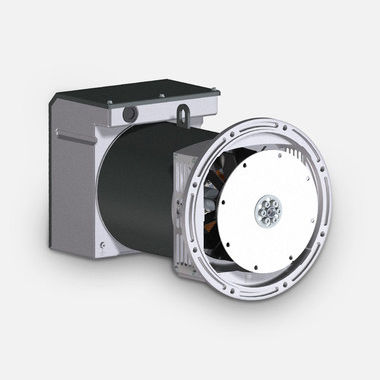

Three-phase alternator ECP3
brushless2-polegenerator

three-phase alternator
three-phase alternator
Add to favorites
Compare this product


Characteristics

Phase
three-phase
Type
brushless
Number of poles
2-pole
Product applications
generator
Domain
industrial
Power in kVA

Max.: 24 kVA
(32.63 hp)

Min.: 8 kVA
(10.88 hp)

Description

The ECP3 range has many product features designed into the alternator. Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding. We guarantee an almost constant supply from the generator – under any possible operating condition. The windings have a 2/3 pitch in order to reduce the harmonic content of voltage. The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.
