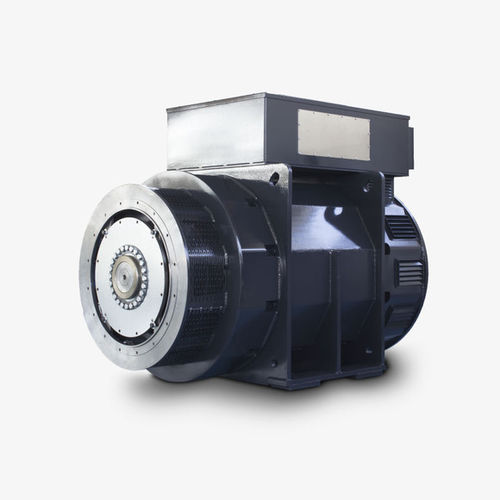

Three-phase alternator ECO49brushless4-polehigh-voltage
Add to favorites
Compare this product
Characteristics
- Phase
- three-phase
- Type
- brushless
- Number of poles
- 4-pole
- Electrical characteristics
- high-voltage, medium-voltage
- Domain
- industrial
- Power in kVA
Min.: 2,500 kVA
(3,399.05 hp)Max.: 4,850 kVA
(6,594.16 hp)- Voltage
Min.: 0 V
Max.: 14,000 V
Description
4 Poles medium and high voltage brushless synchronous alternator
Ratings from 2500 kVA up to 4850 kVA *
50/60Hz - 1500 / 1800 rpm
Axle height 630mm
Medium and high voltage up to 13.8 kV
Insulation system class H, based on Epoxy resin and Mica tapes, VPI process
IP23 protection
IC01 cooling
Single bearing with SAE flange 0-00 and disc coupling SAE 18-21
Double bearings B3B14
Digital voltage regulator DER2 as standard
A vast choice of accessories and configuration for your projects
(*) @ 50Hz / cl.H / 40°C /PF0.8, referred to a 11kV unit
