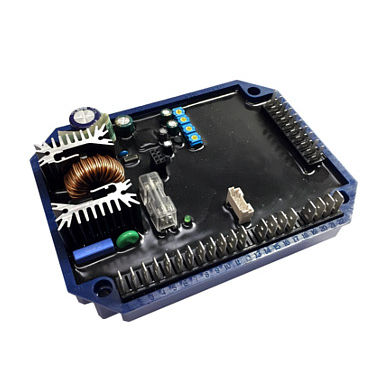

Single-phase voltage regulator DER1

three-phaseautomatic

Born as a DSR evolution, it is building is extra feature such as single and three phases sensing automatic detection, higher flexibility in remote voltage control, soft start and a voltage precision of 0.5% in static condition. The connectors for connection to and from the power generator and communications module are located on the DER1 regulator. The supervision unit can be made up of a personal computer, another “synoptic” device or both; it does not have the function of controlling the system in real time, but allows programming and visualisation of all operational parameters of the DER1. Since the regulator is designed to control many different types of generators, it must be appropriately configured to obtain the best performance; most of the settings are stored in a non-volatile integrated memory (EEPROM)
