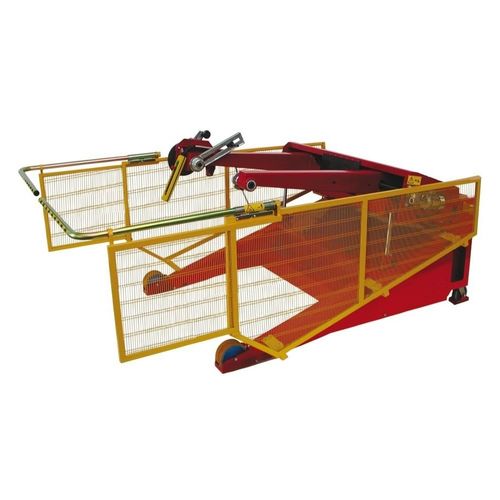

Cable drum unwinder CD-22/BM

motorizedwith movable arms

LOW PERFORMANCE - 20-30 operations a day on average Independent arms with separate opening and closing operation, motor driven. Electro-hydraulic lifting. VULKOLLAN wheels. (two wheels and two castors). Electro-hydraulic front parking jacks. CE-approved safety guards fitted for protection. Supply voltage 380 V (to be confirmed at order stage) Not suitable for rail handling Machine height (mm) - 1400 mm Machine width (mm) - 2600 mm Length with guards on (mm) - 3300 mm Empty weight (kg) - 1200 kg Drums - maximum diameter (mm) - 2200 mm Drums - minimum diameter (mm) - 800 mm Drums - Maximum width (mm) - 1540 mm Drums - Minimum width (mm) - 490 mm Drums- Max. weight capacity (kg) - 4000 kg Total power (kW) - 3.50 KW Machine movement speed - 4 km/h
