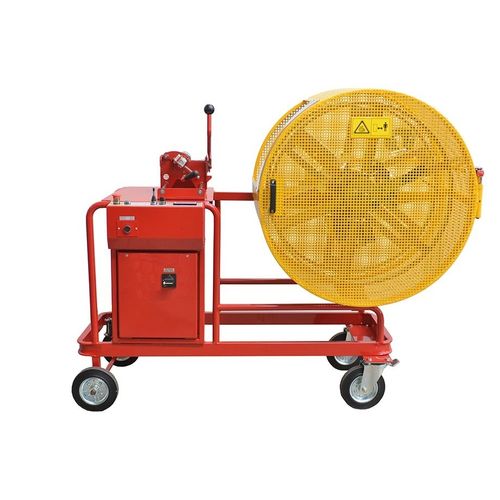

Motorized coiler ASM-16-R/V
cablemobile

motorized coiler
motorized coiler
Add to favorites
Compare this product


Characteristics

Operation
motorized
Applications
cable
Other characteristics
mobile

Description

For low workloads Coiling head Ø800 Self-locking wheels (two wheels and two castors). Cable measuring device max. Ø 35mm. Manual cable cutter Ø 15mm. Measuring accuracy ±1.5% on coated round cables. Supply voltage 220 V single phase. CE-approved safety guards fitted for protection. Motorized variable-speed machine Machine height (mm) - 1400 mm Machine width (mm) - 800 mm Machine length (mm) - 1560 mm Weight (kg) - 130 kg Total power (kW) 0.37 KW Min./max. rpm (rpm at coil) - 0-70/min Coiling head - max. coil core diameter (mm) - 620 mm Coiling head - min. coil core diameter (mm) - 320 mm Coiling head - max. coil width (mm) - 220 mm Coiling head - min. coil width (mm) - 115 mm Uncoiler - Plate diameter (mm) 700 mm Uncoiler - Max. coil core diameter (mm) - 320 mm Uncoiler - Min. coil core diameter (mm) - 80 mm Uncoiler - Coil height (mm) - 250 mm Load capacity (kg) - 250 kg
