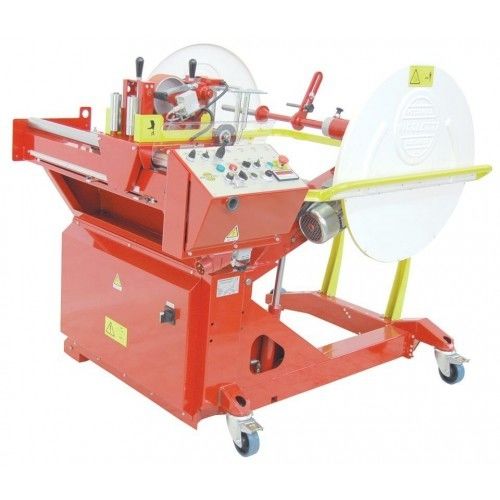

Cable winder BOB-MAT-AP

automatic

HIGH PERFORMANCE - More than 30-40 operations a day on average • Electro-hydraulic lifting. • Vulkollan wheels. (two wheels and two castors) • Fixed toothed drum shaft, drum locking with rack-operated moveable cone • Pushbutton-operated electronically controlled variable speed 0/70 rpm (without manual potentiometer) with automatic return to minimum speed • Machine capable of operating unattended • Supply voltage 220/380 V three phase (to be confirmed at order stage) • CE-approved safety guards fitted for protection. Machine height (mm) - 1500 mm Machine width (mm) - 1650 mm Machine length (mm) - 1800 mm Empty weight (kg) - 350 kg Drums - maximum diameter (mm) - 1000 mm Drums - minimum diameter (mm) - 600 mm Drums - Maximum width (mm) - 710 mm Drums - Minimum width (mm) - 300 mm Drums- Max. weight capacity (kg) - 700 Kg Total power (kW) - 2 KW Torque - 274 Nm Machine movement speed - 4 Km/h Min./max. rpm (rpm at drum) - 0-70 g/min
