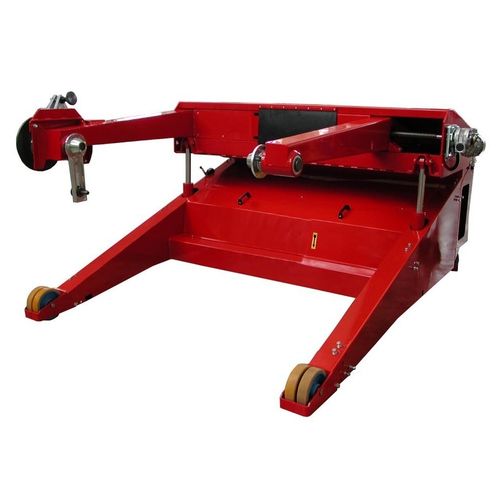

Cable drum unwinder CD-100-BM2/SE1/ST-EL/BI/FR-350-OL/RC
motorizedwith movable arms

cable drum unwinder
cable drum unwinder
Add to favorites
Compare this product

Go to the MECCANICA NICOLETTI website for more information

Characteristics

Type
cable drum
Operation
motorized
Other characteristics
with movable arms
Roll diameter

Max.: 3,000 mm
(118.11 in)

Min.: 800 mm
(31.5 in)

Description

HIGH PERFORMANCE - 20-30 operations a day on average Independent arms with separate opening and closing operation, motor driven. Electro-hydraulic lifting. VULKOLLAN wheels. (two wheels and two castors). Electro-hydraulic front parking jacks. CE-approved safety guards fitted for protection. Supply voltage 380 V (to be confirmed at order stage) Machine height (mm) - 1400 mm Machine width (mm) - 2720 mm Machine length (mm) - 3080 mm Length with guards on (mm) - 3700 mm Empty weight (kg) - 2000 kg Drums - Maximum width (mm) - 2000 mm Drums - Minimum width (mm) - 490 mm Drums- Max. weight capacity (kg) - 10000 kg Total power (kW) - 4.0 KW Machine movement speed - 4 km/h
