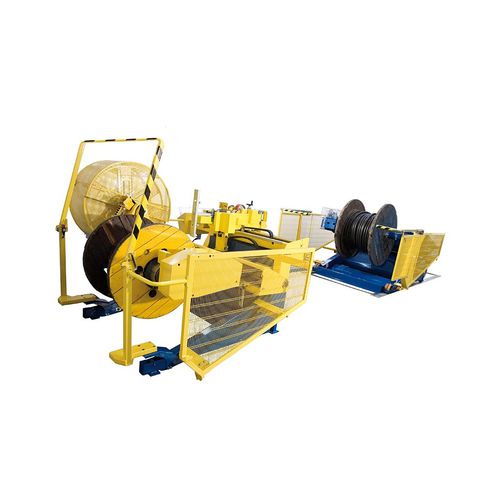

Cable drum rewinder-winder LINAP-60/26-BA

automaticmotorizedmobile

LOW PERFORMANCE - Up to 10 operations a day on average Mobile rail-mounted payoff Tensioning with manual brake Standard speed: 0-80 rpm Maximum torque 1512Nm Weight capacity 6000 kg Supply voltage 380 V (to be confirmed at order stage) Overall dimensions: Length 13600 mm Width 4600 mm Perimeter guarding to CE standards comprising fixed barriers and safety light curtains Rope for cable attachment and drawing on take-up. Approximate performance +20% compared to separate take-up and payoff The system is capable of performing the winding cycle automatically unattended. CD-40/BM2/SE1/BI SHAFTLESS drum payoff with INDEPENDENT ARMS - weight capacity 6000 kg - max. Ø 2600mm min. Ø 600mm – Width max. 1460mm Independent arms with separate opening and closing operation, for easier gripping of drums that are not centred with the payoff. Motor-driven arms Electro-hydraulic lifting Payoff runs on rails fastened to the floor. Pendant pushbutton station for controlling unit travel on wheels along rail Gearmotor-driven wheel Electro-hydraulic front parking jacks. Gearmotor unit for unwinding to attach cable on take-up and retrieve length of cable once the operation is done. Pendant pushbutton station for controlling cable attachment and retrieval. Tensioning system with manually adjusted brake. Drum positioning cradle
