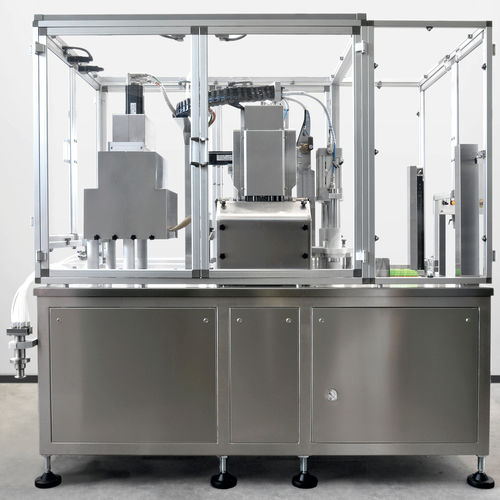

Automatic filling machine UFCM-013

ampoulefoodbeverage

SPECIAL FILLING MACHINE FOR UNICADOSE® Innovative Filling Machine offering the highest performance in terms of productivity for filling liquids in MONODOSE. The machine has been designed and manufactured for filling UNICADOSE® in multiple units (CRISTALLISOIR), making it possible to produce more than 6,000 single doses/hour. Filling Machine for aqueous, oily and alcoholic liquids normally used in the cosmetic, food, pharmaceutical and veterinary industries, with varying characteristics of viscosity. The Filling Machine allows for carrying out the opening-filling-capping steps in full observance of the innovative concept of the UNICADOSE® ampoule. TECHNICAL DATA Standard electric power supply 380 V - 50 Hz Air pressure 6 bar Air consumption: approximately 600 litres/min. Approximate dimensions 2260 mm x 1315 mm H 2220 Weight 1200-1400 kg. Machine managed by PLC. Remote assistance The technical features described may be susceptible to variations due to the fact that the manufacturer constantly updates the technical solutions in order to improve the machine performance STANDARD FEATURES • Stainless steel construction with polycarbonate safety protection • Single Filling and Double Filling • Technology designed for the UNICADOSE® product with multiple flling and without contact with the single ampoule by the operator • Automatic machine • Filling speed depending on the type of liquid (aqueous, oily, alcoholic) • Suitable for noncorrosive and non-flammable liquids • Liquid with various characteristics of viscosity • Suitable for liquids commonly used in the Food and Cosmetic industries • Size range 5ml, 10ml, 15ml
