Safety control relay SRL12 NO/NCAC/DCemergency stop
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- safety
- Contact configuration
- 2 NO/NC
- Network
- AC/DC
- Applications
- emergency stop
- Mounting
- DIN rail
- Norms
- SIL
- Tripping current
2 A, 4 A
Description
• 24VAC/DC supply
• LED diagnostics
• Dual channel output
• Automatic/manual-monitored reset

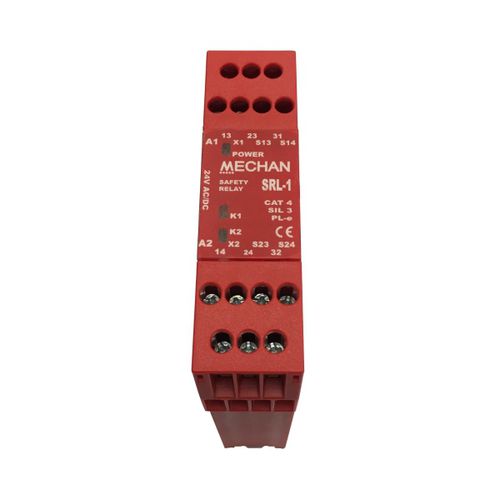

The SRL-1 Safety relay has dual channel, low voltage inputs, two normally open control contact outputs and one normally closed indication contact.
With LED indication to speed up fault finding and a slim 22.5mm DIN rail mounting enclosure the SRL-1 takes up minimum control panel space.
Designed for operation with the Mechan range of non-contact safety switches, the SRL-1 is also suitable for use with dual channel Emergency Stop buttons, or safety devices with 2 safety outputs e.g mechanical safety switches (locking or non-locking).
Depending on installation the SRL-1 can be used in CAT-4 / SIL 3 safety circuits.
