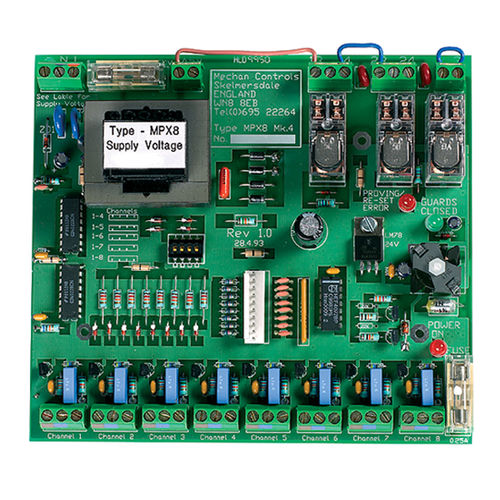

Control unit MPX8

• 4-8 safety switch inputs • Dual channel output & monitoring • 35mm DIN rail mounting • Fully electronic safety switches • Unique code option (EN 14119) The MPX8 has 2 NO safety output contacts and a reset/monitoring circuit for simple connection to existing control systems. A DIP switch mounted on the PCB of the MPX8 can set the unit to monitor between 4 and 8 fully electronic, Mechan safety switches. Mounted on a chassis plate the MPX8 is designed for easy fitting into a control panel. Optional indicator boards give each safety switch input LED, TFR or volt free contact status indication. The MPX control units are designed to work with the F-Type, B-Type, S-Type, Dinky electronic safety switches and the unique code CMA electronic safety switches.
