Multipole switch O-Type

washdownIP67IP69K

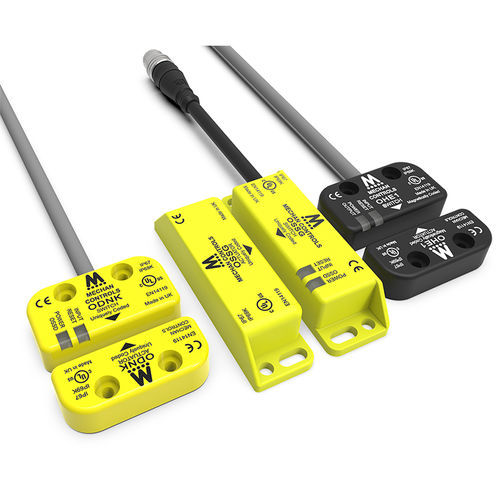

• OHE1 - Coded Magnetic / ODNK & OSSG - Uniquely Coded RFID • Advanced OSSD Outputs, Connect up to 30 in Series Maintaining PL-e • Dual RGB Indication for Advanced Diagnostics • Unique Overhanging LED for Visibility in all Mounting Positions • External Device Monitoring with 2A Output Rating • IP67 & IP69K Fully Sealed, Washdown The O-Type range combines 40+ years of experience design­ing and manufacturing machine guard safety switches with the latest in safety technology. There unique design means 30off O-Type switches can be connected in series maintaining PL-e. The O-Type safety switches have been designed for use on applications where guard-locking is not required. They are available in either uniquely coded RFID (yellow) or coded magnetic (black). The dual channel OSSD outputs can be used to reach a safety category of CAT4, SIL3, PL-e in accordance with the latest international safety standards. Because they have no mechanical parts, they guarantee a long life even in applications with regular operation cycles and tough environmental conditions. The O-Type switches can be used with a fea­ture called EDM (external device monitor­ing). This means you can monitor the state of contactors or safety relays in order to detect failure of the external device eliminating the need for a safety monitoring device.
