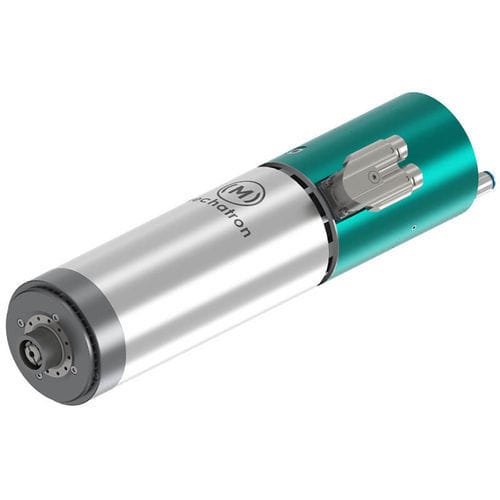

Motor spindle with pneumatic tool changer ATCAC seriesmillingdrillingmachining
Add to favorites
Compare this product
Characteristics
- Function
- milling, drilling, machining, industrial, monitoring
- Drive system
- AC motor
- Spindle mount
- HSK-E 25, ISO 20
- Lubrication/cooling
- air-cooled
- Other characteristics
- for robots, with automatic tool changer, with pneumatic tool changer, for wood, for aluminum, for working plastic, high-frequency
- Rotational speed
Max.: 36,000 rpm
(226,194.67 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
80 mm
(3.1 in)
Description
In addition to the advantages of the liquid-cooled ATC series, the ATCAC series offers further special features. The ATCAC spindles have an innovative cooling system that achieves protection class IP54 with air cooling. The passively generated sealing air requires no additional compressed air, which saves high energy costs.
Catalogs
ATC-8022-ISO20-V2
2 Pages
