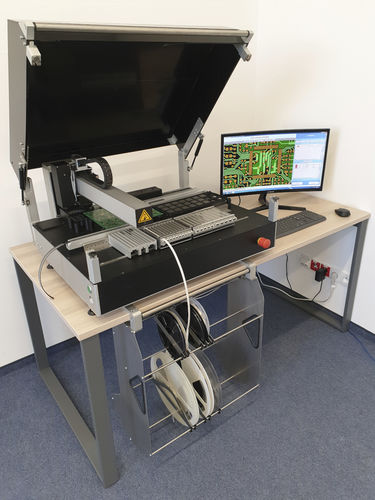

SMT pick-and-place machine P10

automaticwith optical alignment system

TECHNICAL DATA working area max. 500x480mm Component range from 0201 to 40x80mm min pitch 0,4mm components packgage tapes / sticks / trays / bulk Components centering non-contact alignment Placement rate up to 1100 cph. Dispensing rate up to 6000 dots/h Feeder capacity up to 80 x 8mm - tape strips or reels and 2 x (300 x 200mm) - IC-tray with 200 x 300mm PCB size Resolution X / Y - axis - 0,008mm ( linear encoder ) Z - axis : 0,02mm ( linear encoder ) Rotation : 0,01° ( rotation encoder ) Placement accuracy +/- 0,03mm Dimension and weight 840 x 630 x 430 mm / ca. 92 kg Supply 110-230V / 50-60Hz / 850W / 0,6 MPa / 20l/min KEY FEATURES Precision automatic SMT pick & place machine with alignment system and dispensing valve automatic pick & place head automatic dispensing head automatic nozzle changer ( 6 tools ) top camerasystem for automatic fiducial bottom camera - optical alignment system for SMD components Gerber - and CAD editor ( all CAD-systems ) teach-in mode - electronic manipulator vision inspektion of printing accuracy of solder paste and accuracy of component placement operating system: Windows 7/8 remote service via internet Graphical user interface Application area suitable for small and medium volume production qualified for pick & place of all types of components
