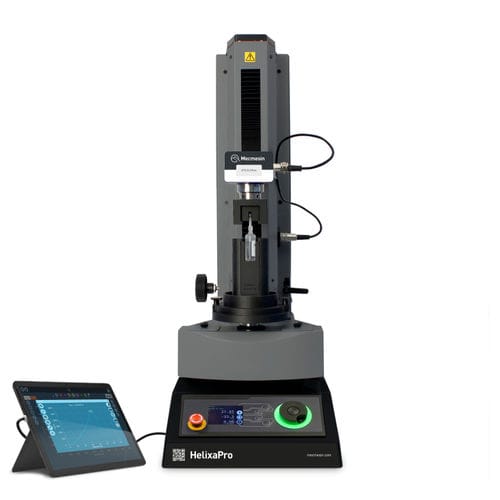

Bench-top torque tester HelixaPro

for bottle closuresFor Luer fittingautomated

The HelixaPro is a precision torque tester controlled by VectorPro software. Designed for challenging applications where torque forces may be very small and accuracy is key, the HelixaPro is ideally suited for measuring the mechanical properties of various small components and assemblies used in medical devices, watches, cosmetics applicators, and bearings to ensure they meet strict quality criteria. The HelixaPro is easy to use and, when combined with application-specific fixturing, it is the optimal solution for measuring torque from 1 mN.m to 6 N.m. It has been designed for precision alignment between the torque sensor and drive motor. Combined with a counterbalanced crosshead to eliminate the weight of a grip, it ensures optimum accuracy and repeatability particularly when testing at extremely low torque. It incorporate state-of-the-art electronics and a range of high-resolution precision Enhanced Torque Sensors (ETS). With an impressive reading accuracy of 0.5% and a resolution of 1:50,000, it enables a broader range of tests to be performed without the need to switch torque sensors. This advancement in technology ensures exceptional torque measurement accuracy, setting a new industry standard. The HelixaPro has a user-friendly front panel, live torque and angle readings, and precise manual positioning of the rotary table using the multifunction controller. With colored LEDs providing visual cues to indicate the machine's status during testing, a seamless testing experience is ensured. It is supplied with VectorPro testing software. Step-by-step test routines can be quickly and easily created according to the requirements of your testing procedures.
