Tensile strength tester Alluris FMT-W30

for wire terminalsportablecompact

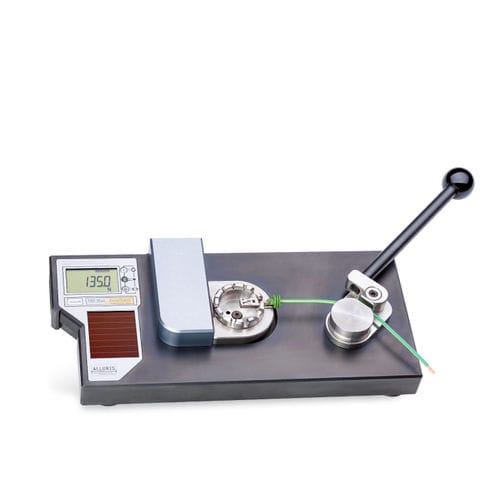

The Alluris FMT-W30 manual wire-terminal pull tester is designed for crimped wire terminal testing where budgets are limited and it has been decided to overlook the recommendations in test standards to test at a constant pull rate. Two versions are available in two capacities; 500N (110 lbf) and 1000N (220 lbf) The lever operation of the FMT-W30 pull tester makes it very easy to use, and ideal as a portable device in situations where a constant pull speed is deemed not essential, or where mains power is not available to run a motorised pull tester. The crimp receptacle fixture has 12 slots ranging in width from 0.5 – 6 mm covering AWG 8-30 for quick and easy loading of the terminal. The cable is clamped securely in a cam by a fast-action lever before starting the automatic test at the push of a button. The digital display captures peak load at 1000 Hz and clearly indicates the pull strength result of the test in newtons, pounds-force or kilo-force. Data can be stored and transmitted to optional software for generating a test report. The rugged design features nitride-hardened steel and a scratch-resistant base-plate with non-slip feet. This basic portable device is ideal as an economic pull tester for use in a variety of settings.
