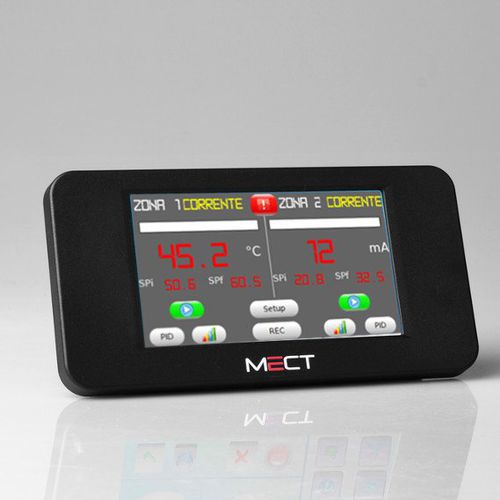

Operator terminal with touch screen TPAC1007

panel-mount320 x 240ARM9

Based on an ARM9 architecture, the TPAC1007 is a PLC with human-machine interface device with 4.3" touch-screen which integrates the QT graphics libraries. The operator panel with PLC can be supplied with horizontal or vertical monitor. "MECT SUITE" softwares are OpenSource. It is available the Remote Connection and Monitoring service sMily, essential for Industry 4.0, to remotely control your device, from anywhere at anytime. On the PLC operator panel TPAC1007 there are input/output analogue and digital: 4 Analog inputs, 2 Analog outputs, 4 PNP Digital inputs or 1 Bidirectional Encoder inputs and 8 PNP software configurable digital I/O. The PLC operator panel TPAC1007 is equipped with inputs and outputs both analog and digital , Modbus RTU over RS485 , Modbus TCP and TCPRTU on Ethernet interface. The micro USB port is used as a host for datalogging and software update, or as a device for mass storage. On PLC operator panel TPAC1007 can be installed a micro SD memory card up to 64 GB, for programs and data. SOFTWARE To configure your PLC operator panel TPAC1007 is available the "MECT SUITE" software. "MECT SUITE" contains the software to configure the system and to create the PLC and HMI graphics applications: Qt Creator: Generate graphics HMI application (graphics pages); Generation and definition of the system variables; Configuration of the communication parameters; Operator Panel preliminary setting; Easy insertion of elements associated to PLC variables; Ready pages for recording / logging; Use, if necessary, Qt / C++ code; HMI application debug. ATCMControl: Generation PLC application (in 5 IEC 61131-3 languages); In addition to several libraries are
