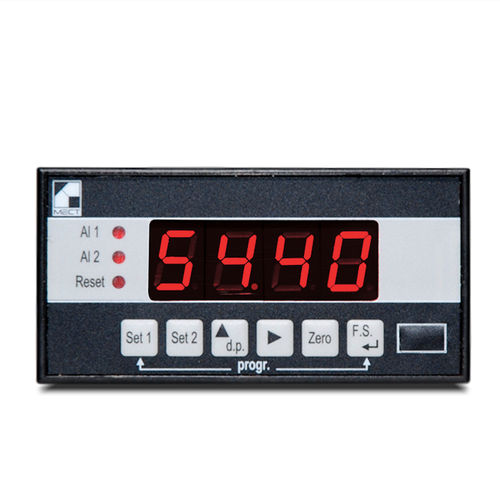

Process indicator MPA-MPV-MPP P6

DC voltageAC voltagecurrent

4 digit display in a 48x96 box for DC or AC current input, DC or AC voltage input or potentiometer input. Optional 2 relays alarm outputs and analogue output or potentiometer input. The MPA models with ammeter input or MPV models with voltmeter input or MPP models with potentiometer input are instruments with a dual slope converter for the measurement of D.C. or A.C. current or for positioning (using potentiometer transducers). The scales available are listed in the "Features" section. The instrument offers the following functions: - 4 digit indicator (+9999 reading points) - automatic reading zeroing - transducer voltage power supply - fixed zero (visualization from -1990 to 9990) - reading at 4 conv/sec (no filter progr.) The instruments of the MPA, MPV and MPP series can be ordered with analogue outputs and two alarm signals which are completely configurable for value, hysteresis and delay functions. Readings: 4 digits Accuracy input DC: < 0,5% Accuracy input AC: 2% Thermal stability: 50 ppm/°C Transducer power supply* *: 14V/25mA (unregulated) Potentiometers connectable (MPP): from 500Ω to 50KΩ Potentiometer power supply: 2,5Vdc Analogue outputs features: Outputs: 4÷20mA - 0÷20mA - 0÷10V Max load for current output: 400Ω Min. load for voltage output: 1KΩ Resolution: 12 bit Exchange relay output: 5A / 250Vac Power supply: 90÷260 Vac/Vdc, 25Vac, Vcc o Vpt (12÷30Vdc) Power absorption: 1,5 W Max working temperature: 50 °C Digits height: 13mm Dimensions: 48x96 ( 75 mm. Depth) Mounting plate: 44.5mm (h) x 92.5 mm (l) Weight: 250 gr. Mounting: by bolts
