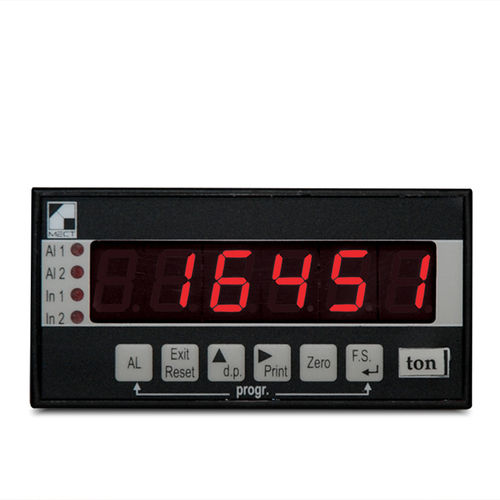

Process indicator MPA - MPV M6

digitalpanel-mount

4½ digit display in a 48x96 box for AC or DC current or voltage input. Optional 4 relays or 8 static alarm outputs and analogue and serial output. The MPA-MPV M6 models are instruments with 16 bit A/D converter for AC or DC voltage or current input. The available measuring scales are listed in the "Features" section. For input voltage > 20Vac, an external resistor partition must be provided. The instrument has the following functions: 4½ digit indicator (± 19999) Reading of any input value inside the requested range Minimum or maximum peak measuring Reading at 30 conv/sec "Filtering" process for instrument readings Zeroing of automatic reading function Possibility of read out with 10 steps linearization. The MPA-MPV M6 instruments can be ordered with the following options: Normal or optoisolated bidirectional serial output or monodirectional version for printer. 8 static alarm outputs or 4 relay alarm outputs for normal working or window alarms completely programmable for value, hysteresis and delay Normal or optoisolated analogue output (4÷20mA or 0÷20mA or 0÷10V). Transducer power output stabilized on request between 5 and 24Vdc Readings: 4½ digits Accuracy input DC: < 0,2% Accuracy input AC: 2% Thermal stability: 50 ppm/°C Transducer power supply: standard 24Vdc on request 5÷20Vdc/20mA Analogue outputs features: Outputs: 4÷20mA - 0÷20mA - 0÷10V Max load for current output: 400Ω Min. load for voltage output: 1KΩ Resolution: 16 bit Exchange relay output: 5A / 250Vac Static outputs NPN-PNP: 50mA/30Vdc Power supply: 90÷260 Vac/Vdc - 12÷30 Vac/Vdc Power absorption: 6W Max working temperature: 50 °C Digits height : 13mm Dimensions: 48x96 (120 mm. Depth)
