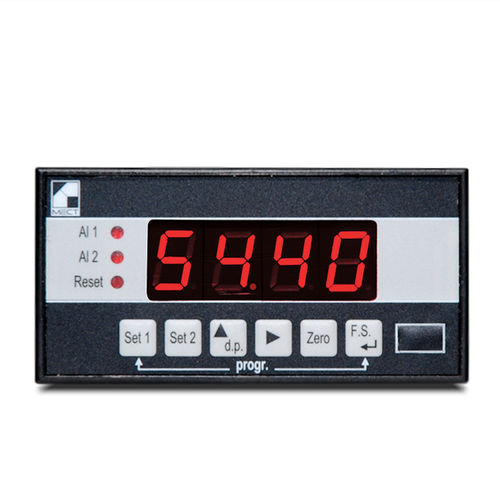

Process indicator MP45 P6

voltageDCAC

4 digit display with two alarms in a 48x96 box for DC or AC voltage, DC or AC current measures or potentiometer input. The MP45 P6 model is programmable with 2 relay alarms. The available scales are shown in the "Features" section. The instrument offers the following functions : 4 digit display for DC inputs (-1999 +9999 reading points), 3200 digits for AC inputs. automatic reading zeroing transducer voltage power supply fixed zero (visualisation from -1990 to 9990) programmed filter (from 0,5 to 33 conv/sec) 2 relay alarm outputs programmable for value, hysteresis and delay. Readings: 4 digits Accuracy input DC: < 0,5% Accuracy input AC: 2% Thermal stability: 50 ppm/°C Transducer power supply* *: 14V/25mA (unregulated) Potentiometers connectable: from 500Ω to 50KΩ Potentiometer power supply: 2,0Vdc Power supply: 25Vac 50÷60Hz | 115Vac 50÷60Hz | 230Vac 50÷60Hz | Vcc o Vpt (12÷30Vdc) Exchange relay output: 5A / 250Vac Power absorption: 1,5 W Max working temperature: 50 °C Digits height: 13mm Dimensions: 48x96 (75 mm. Depth) Mounting plate: 44.5mm (h) x 92.5 mm (l) Weight: 250 gr. Mounting: by bolts
