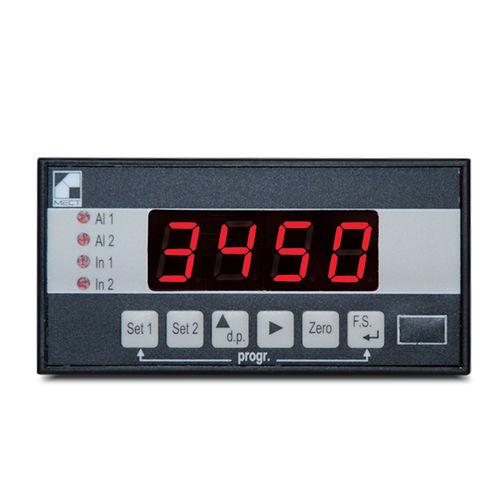

Process indicator MPM P6

voltagecurrentdigital

4 digit display in a 48x96 box with two inputs for 4÷20mA, 0÷20mA, 0÷10V input to display the sum, difference, product and ratio. Optional 3 relay alarm outputs, analogue output and serial outputs. The MPM P6 model is an instrument with a dual slope converter with two voltage or current (4÷20mA) inputs. The instrument has the following functions: 4 digit indicator (-1999÷9999) reading of any input value inside the requested range (for both two inputs) zeroing of automatic reading function programmable readings as follows: in1, in2, in1-in2, in1+in2, in1*in2, in1÷in2. 2 conv./sec (no programmed filter) fixed zero (visualization from -1990 to 9990) The MPM P6 instruments can be ordered with the following options: 2 relay alarm outputs (three if 220V power supply) programmable for value, hysteresis and delay. The alarms can be assigned to display, channel 1, channel 2, sum, difference, product or ratio. analogue outputs (4÷20mA or 0÷20mA or 0÷10V) . RS232, RS422 or RS485 serial output. transducer power supply output 16Vdc (for instrument without alarms and analogue output). Readings: 4 digits Accuracy better than: 0,5% Thermal stability: 50 ppm/°C Transducer power supply* *: 16V/40mA * (unregulated) Analogue outputs features: Outputs: 4÷20mA - 0÷20mA - 0÷10V Max load for current output: 400Ω Min. load for voltage output: 1KΩ Resolution: 12 bit Exchange relay output: 5A / 250Vac Power supply: 90÷260Vac/Vdc, 25Vac, Vcc o Vpt (12÷30Vdc) Power absorption: 1,5 W Max working temperature: 50 °C Digits height: 13mm Dimensions: 48x96 (75 mm. Depth) Mounting plate: 44.5mm (h) x 92.5 mm (l) Weight: 250 gr. Mounting: by bolts * For display instruments only. For instruments
