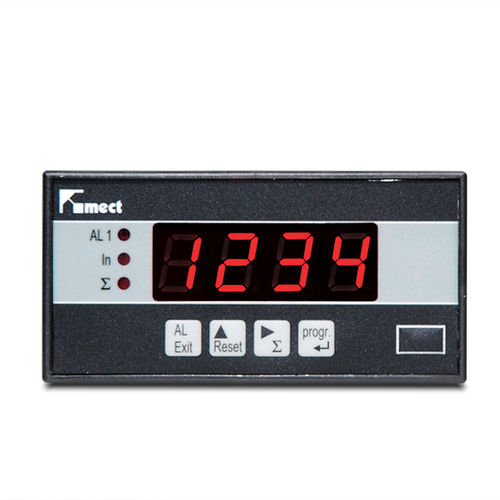

Pulse counter MPCT30 P6

binaryrevolutiondigital

4 digit display in a 48x96 box for pulse, RPM, frequency meter, hourly production count and timer. Optional 1 relay alarm output. The MPCT30 P6 model is a programmable instrument with unidirectinal pulse counter, rpm meter, frequency meter, hourly production meter or timer. Programming can be undertaken using four keys. The instrument offers the following functions: memorized count after power down 4 digit counters input from encoders - NPN or PNP sensors and mechanical contact possibility of 'up' or 'down' counting pre-set counting (counter and timer) divisors programmable from 1 to 9999 multipliers programmable from 1 to 9999 possibility to set up revolution points total count functioning 1 alarm (on request) alarm in RPM, frequency meter and hourly production mode: threshold or windows alarm in counter or timer mode: threshold, threshold with stop counting or automatic cycle Transducer power supply: 16Vdc / 50 mA unregulated* on request 5 Vdc / 20mA Counter max input frequency: 10KHz Rpm max input frequency: 10KHz Power supply: 230Vac 50÷60Hz | 115Vac 50÷60Hz | 25Vac 50÷60Hz | 12÷30 Vdc Power consumption: 1,5 W Max working temperature: 50 °C Digits height: 13mm Dimensions: 48x96(75 mm depth) Mounting plate: 44.5mm (h) x 92.5 mm (l)
