Binary counter MPCIB396 P6

digitalelectronicindustrial

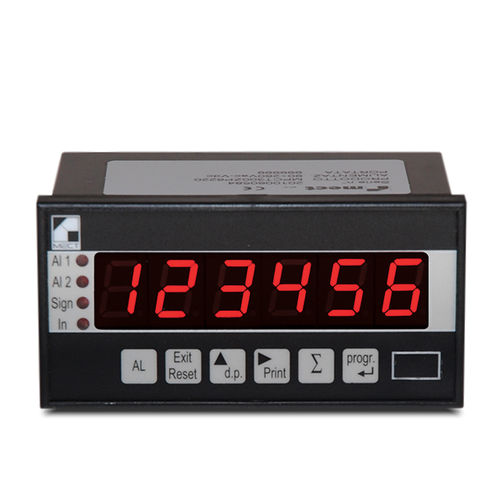

6 digit display in a 48x96 box for bi-directional encoder count. Optional 3 relay alarm outputs and serial outputs. The MPCIB396 P6 model can be used for counting, positioning or measuring by means of an incremental bi-directional encoder. The instrument offers the following functions: memorized count after power down 6 digit counters bi-directional serial outputs with opto isolation (RS485 half duplex) input from encoders - NPN or PNP sensors 3 alarm outputs ( 5A relay) pre-set function divisor programmable from 1 to 65535 multiplier programmable from 1 to 65535 1, 2 or 4 input edges counting 1 count input and 1 up/down control input 2 indipendent count inputs A and B with A + B or A - B function analogue output (4÷20mA or 0÷20mA or 0÷10V) alarm setting: windows, threshold, threshold with stop counting, automatic cycle for up counting, automatic cycle for down counting, offset respect setpoint 1 Transducer power supply: 16Vdc / 100 mA unregulated on request 5Vdc 50 mA Counter max input frequency: 40KHz Exchange relay output: 5A / 250Vac Analogue outputs features: Outputs: 4÷20mA - 0÷20mA - 0÷10V Max load for current output: 400Ω Min. load for voltage output: 1KΩ Resolution: 12 bit Power supply: 90÷260 Vac/Vdc, 20÷30 Vac/Vdc Power absorption: 5 W Max working temperature: 50 °C Digits height : 13 mm Dimensions: 48x96 (75 mm. Depth) Mounting plate: 44,5 mm (h) x 92,5 mm (l) Weight: 250 gr. OPTIONS AND SERIAL OUTPUTS SR1÷3: 1÷3 relay alarms V5: Transducer power supply 5Vdc / 50m OAP: Aanalogue outputs (0÷20mA, 4÷20mA, 0÷10V) Cod. 12: RS 422 optoisolated bi-directional Cod. 13: RS 485 optoisolated bi-directional Cod. 14: RS 232 optoisolated bi-directional
