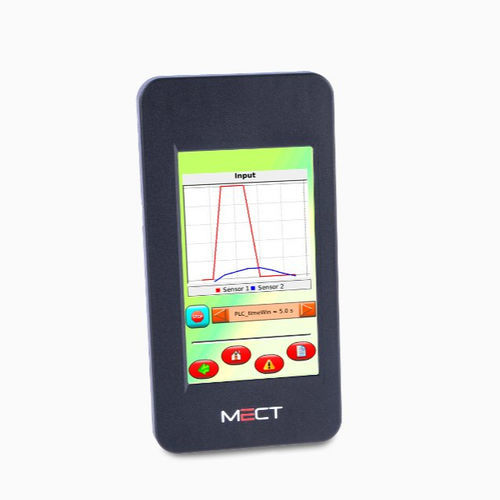

Operator terminal with touch screen TP1043

panel-mountARM9USB

Based on an ARM9 architecture, the operator panel TP1043 is a human-machine interface device with 4.3" touch-screen which integrates the QT graphics libraries. "MECT SUITE" softwares are OpenSource. It is available the Remote Connection and Monitoring service sMily, essential for Industry 4.0, to remotely control your device, from anywhere at anytime. The PLC operator panel TP1043 is equipped with Modbus RTU over RS485 or CANopen, Modbus TCP and TCPRTU on Ethernet interface. On the operator panel there is a micro USB port that is used as a host for datalogging and software update, or as a device for mass storage. On the operator panel TP1043 can be installed a SD memory card up to 64 GB, for programs and data. SOFTWARE To configure your PLC operator panel TP1043 is available the "MECT SUITE" software. "MECT SUITE" contains the software to configure the system and to create the PLC and HMI graphics applications: Qt Creator: Generate graphics HMI application (graphics pages); Generation and definition of the system variables; Configuration of the communication parameters; Operator Panel preliminary setting; Easy insertion of elements associated to PLC variables; Ready pages for recording / logging; Use, if necessary, Qt / C++ code; HMI application debug. ATCMControl: Generation PLC application (in 5 IEC 61131-3 languages); In addition to several libraries are available those of PID and Self-tuning; PLC application debug.
